中意生态节能建筑 | Mario Cucinella Architects


文章附图

3 (2).jpg

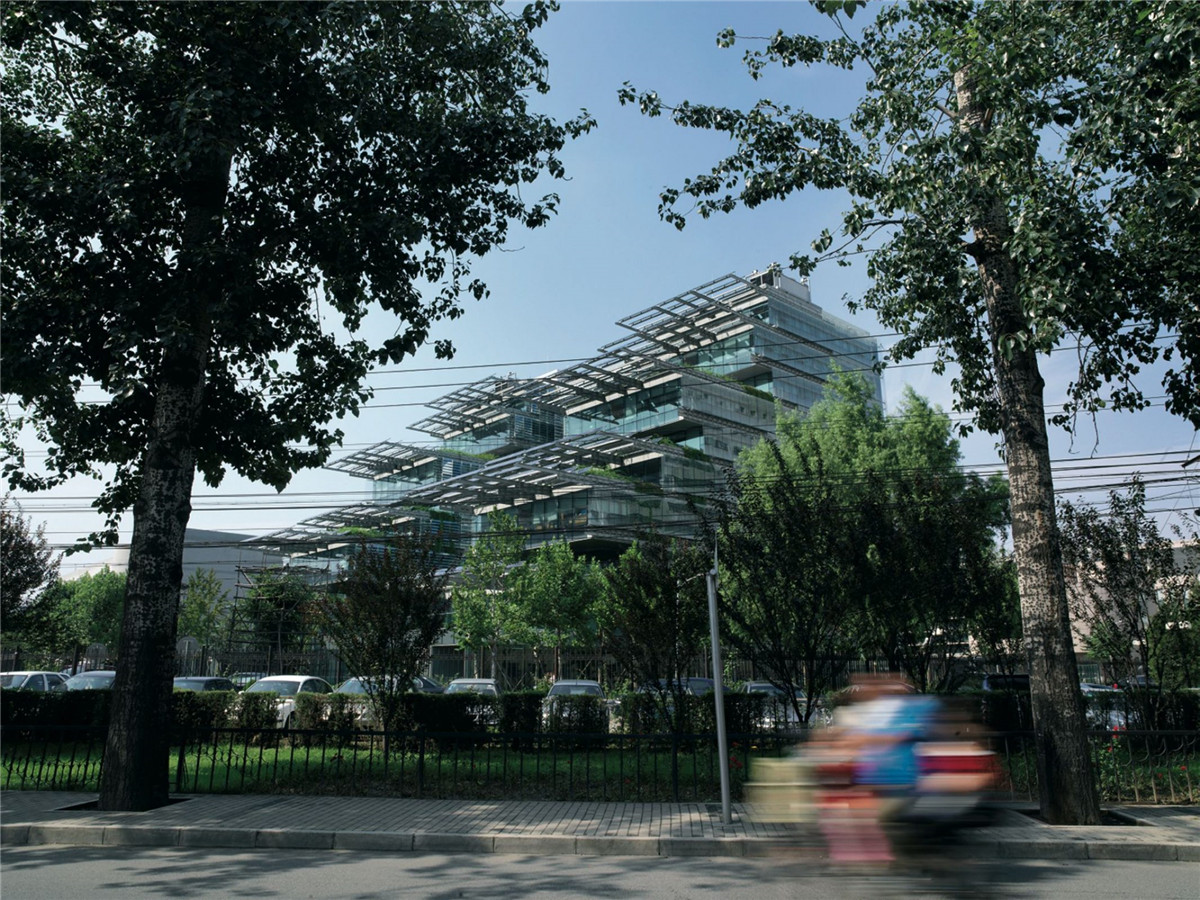

Born out from a joint venture between the Italian and Chinese Governments, SIEEB was built on the campus of Tsinghua University, it occupies an area of 20,000 m2 and hosts the Sino-Italian ecological center of education, training, and research for the protection of environment and energy conservation.


SIEEB由意大利和中国政府的合资企业诞生,建在清华大学校园内,占地20,000平方米,拥有中意生态保护,教育,培训和研究的生态和节能中心 。


3 (3).jpg3 (4).jpg3 (5).jpg

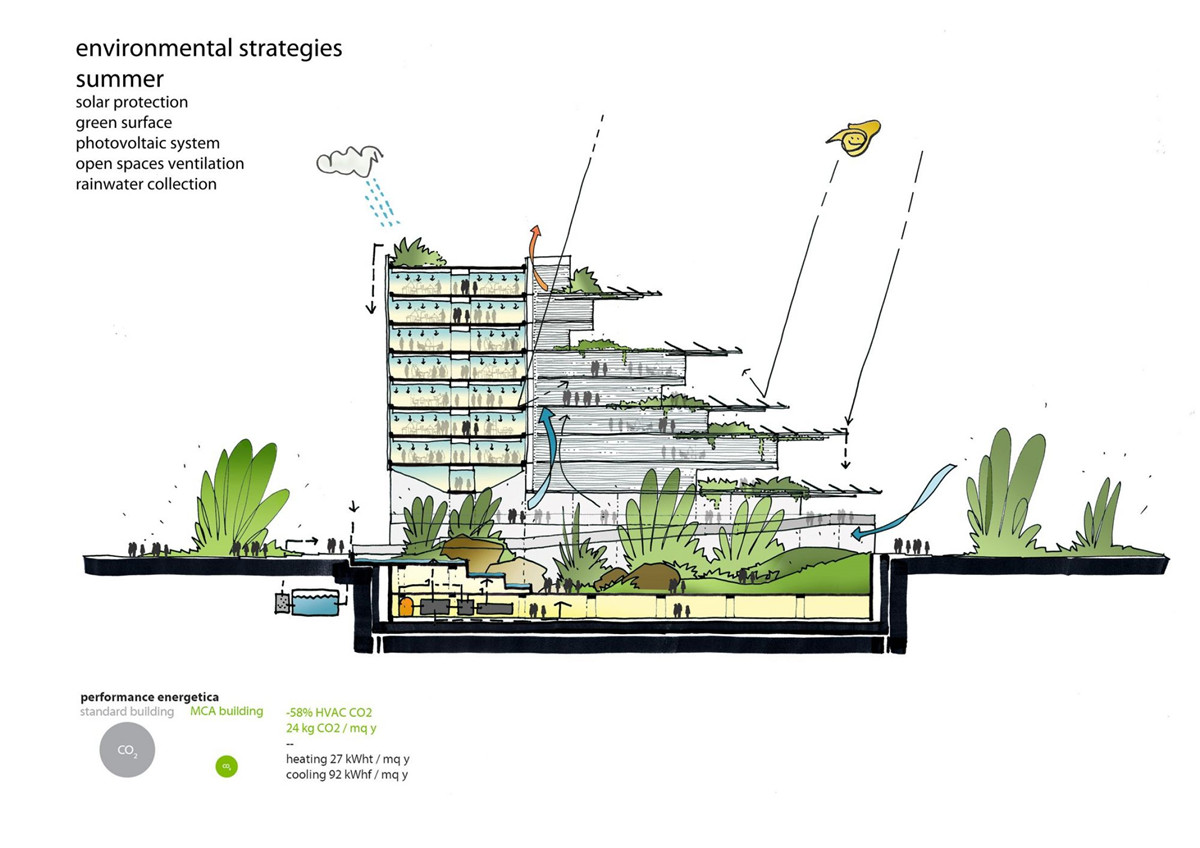

The building is designed as a ‘showcase’ for the potential for reducing CO2 emissions in China. The design integrates passive and active strategies to control the external environment in order to optimize internal environmental conditions.


该建筑被设计为“展示柜”,具有减少中国CO2排放的潜力。该设计集成了被动和主动策略来控制外部环境,以优化内部环境条件。


3 (6).jpg3 (7).jpg3 (8).jpg3 (9).jpg

3 (10).jpg

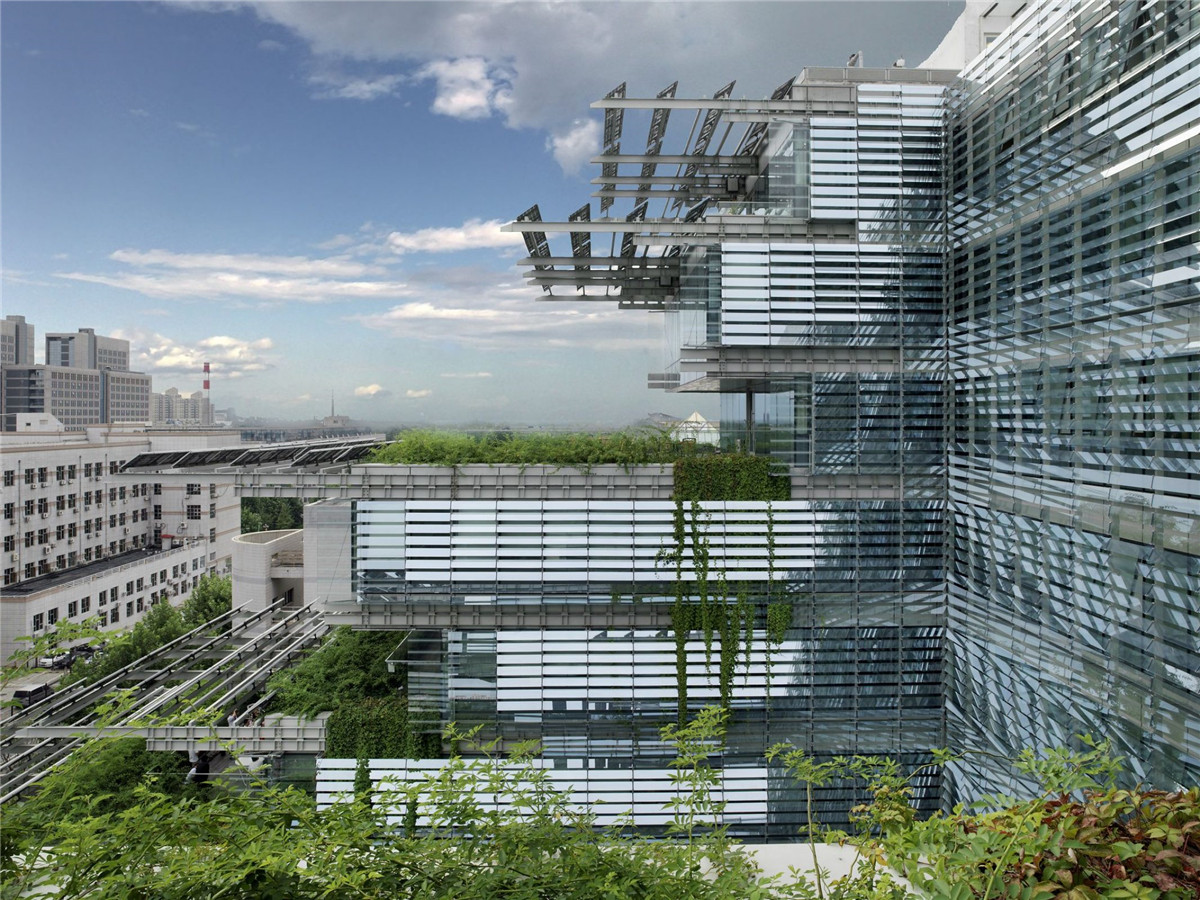

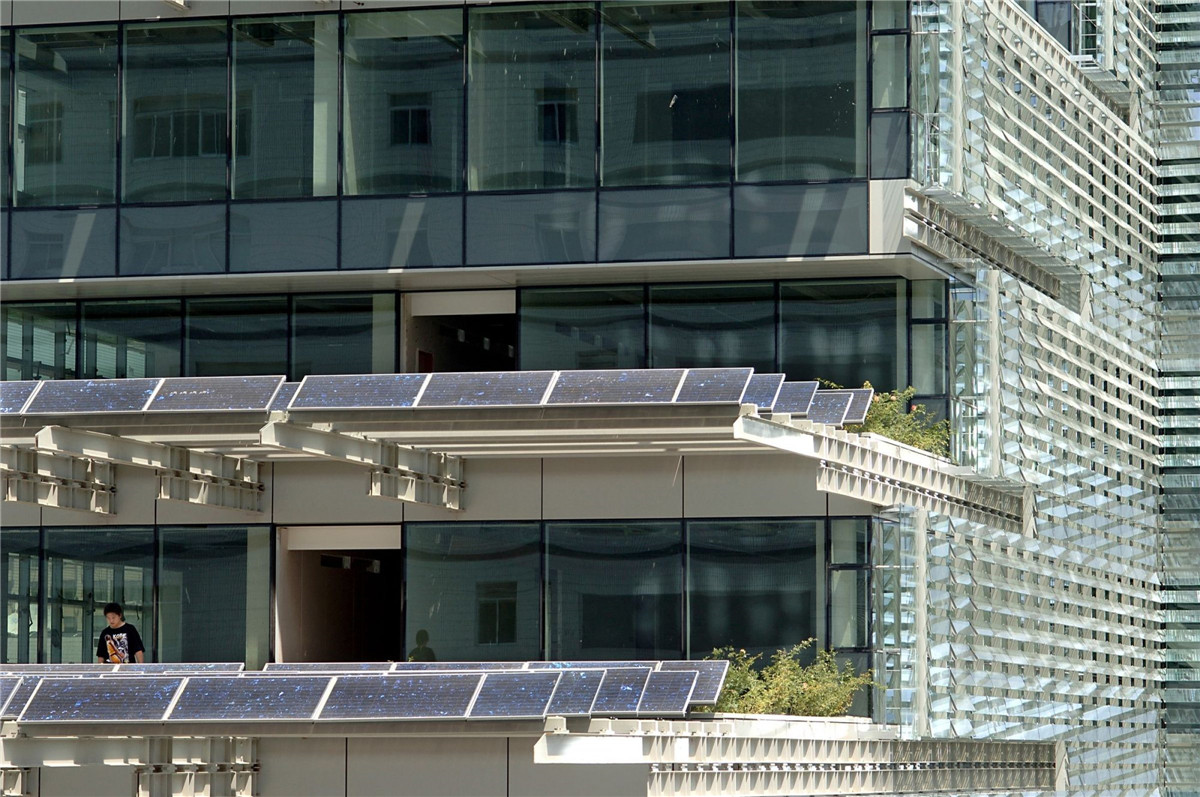

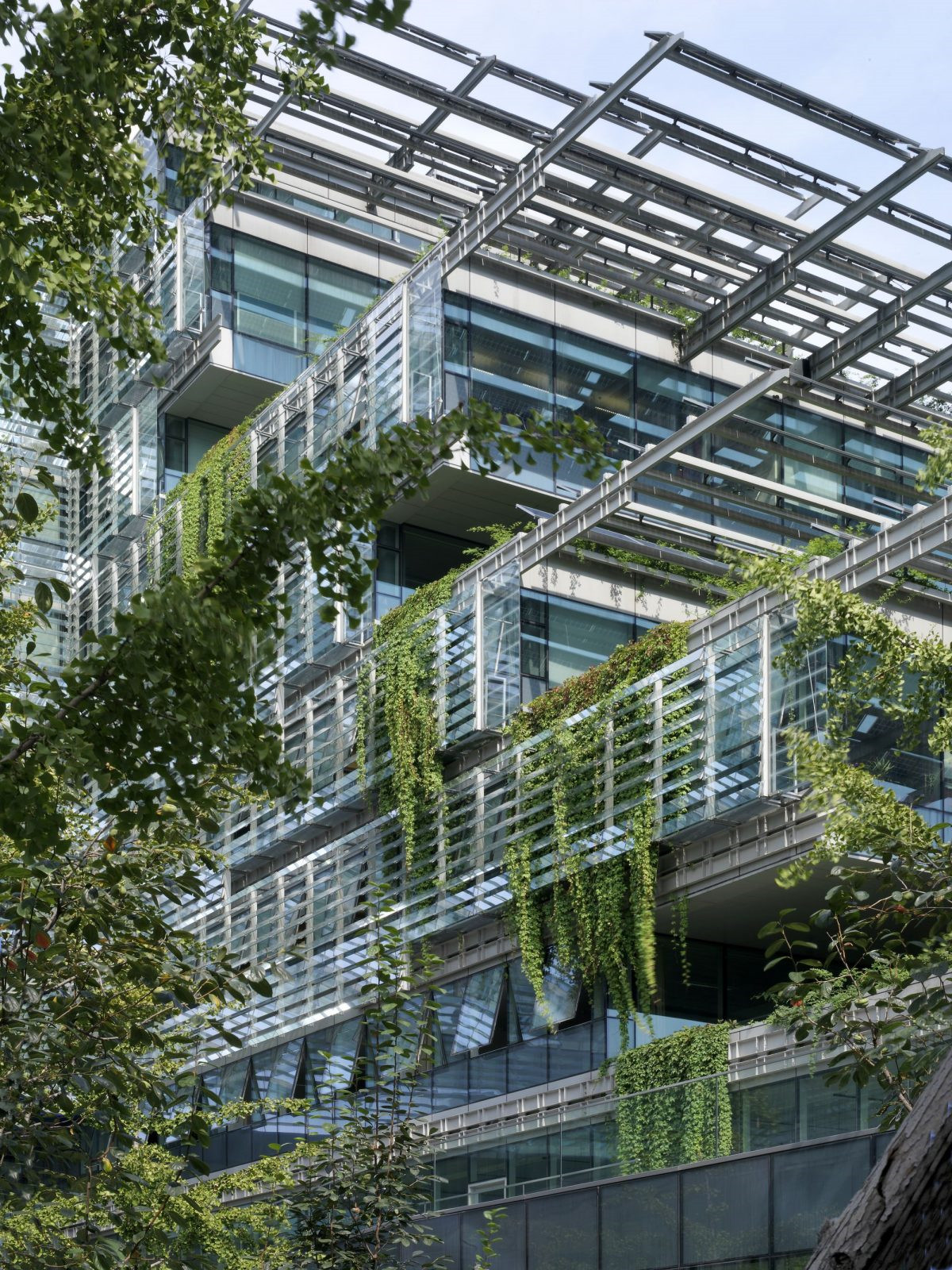

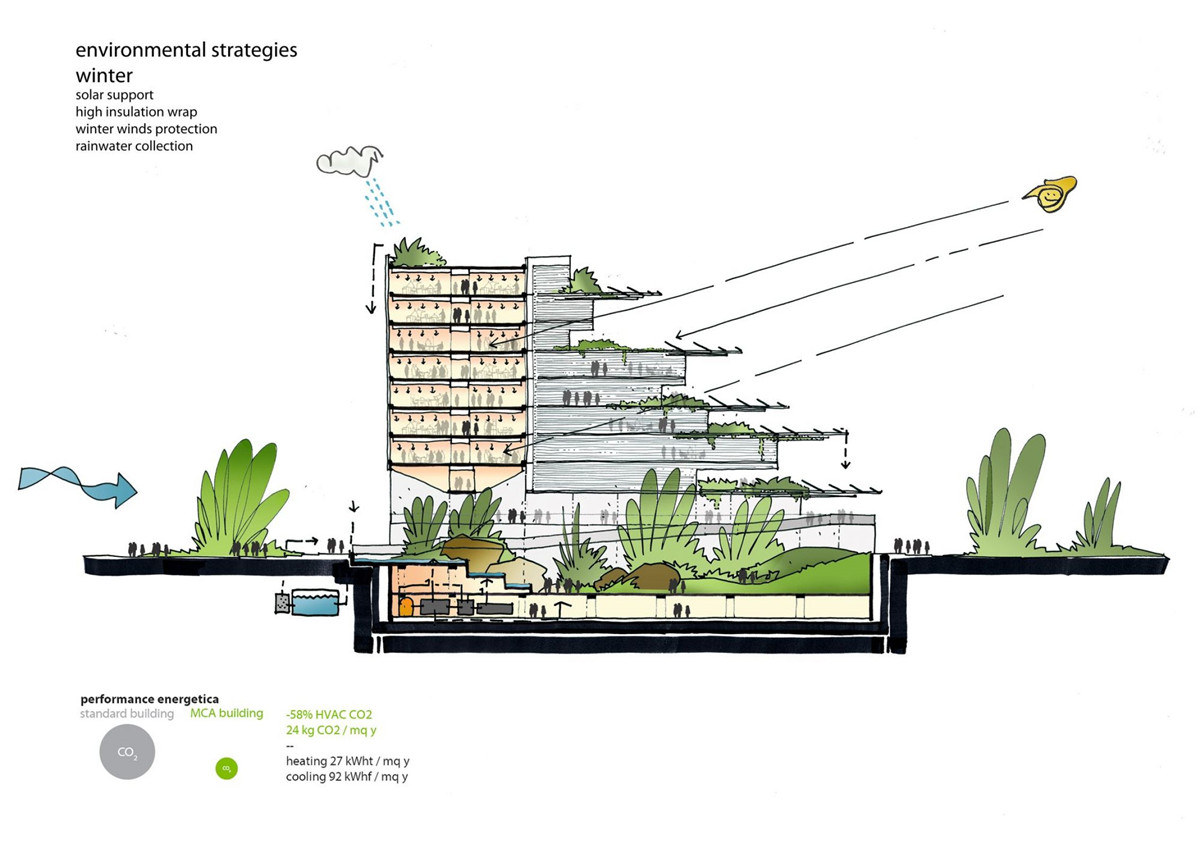

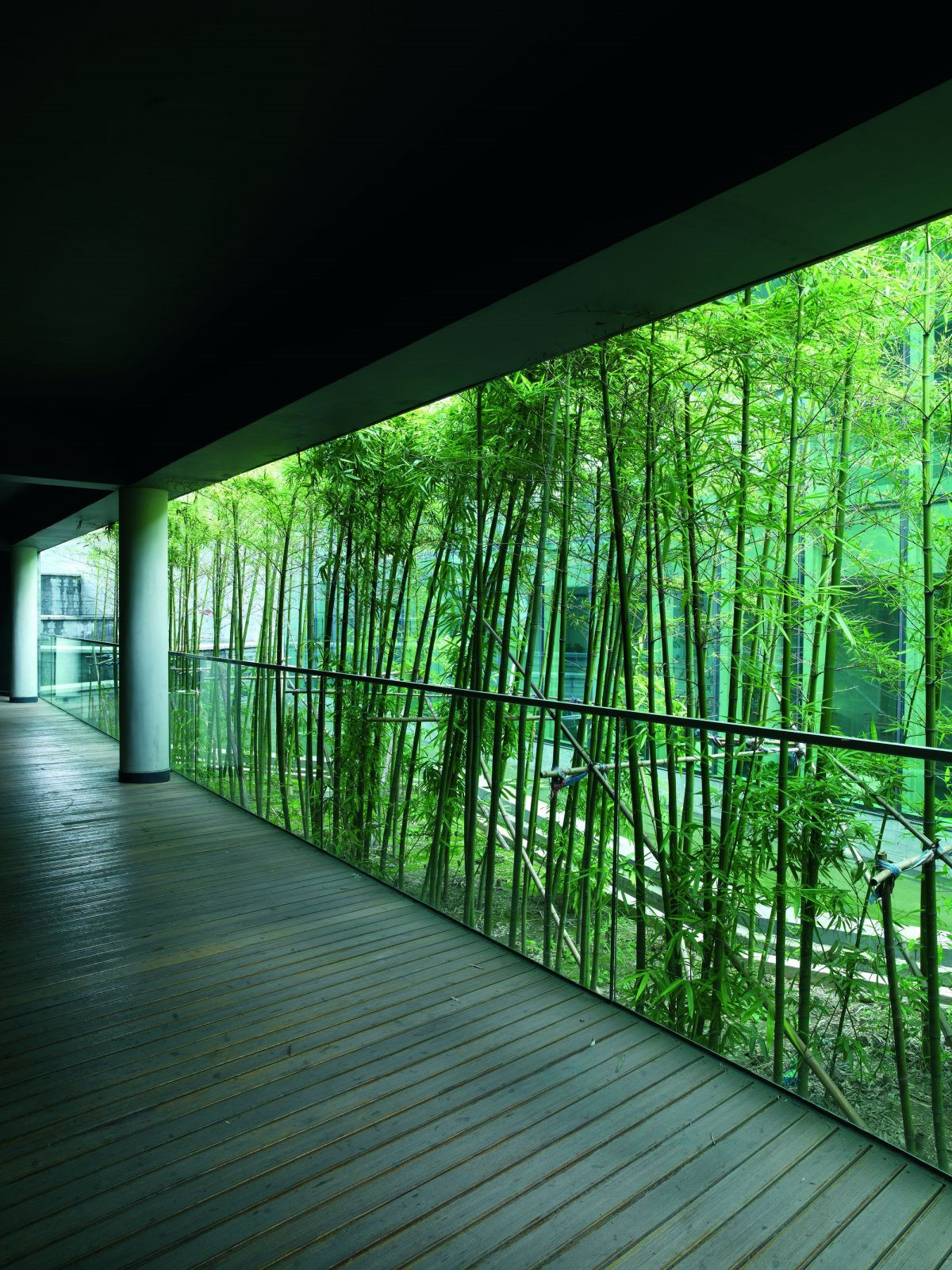

The building is U shaped in plan around a central courtyard and on the ground floor, public areas look into a landscaped garden. It is closed and well insulated on the northern side that faces the cold winter winds and open and transparent towards the south. Offices and laboratories on the upper floors have terraced gardens shaded by photovoltaic panels that produce energy for the building.


该建筑呈U形设计,围绕中央庭院,并在一楼,公共区域可看见风景如画的花园。它在面对寒冷的冬季风的北侧是封闭且隔热良好的,而向南则是开放透明的。较高楼层的办公室和实验室设有梯田花园,屋顶花园由光伏板遮蔽,这些光伏板可为建筑物提供能量。


3 (11).jpg3 (12).jpg


SEE MORE (来自)   Mario Cucinella Architects
